Tuotenumero 9050497


4x10"- 2-Way Full-Range Loudspeaker 90° × 90° - price on request

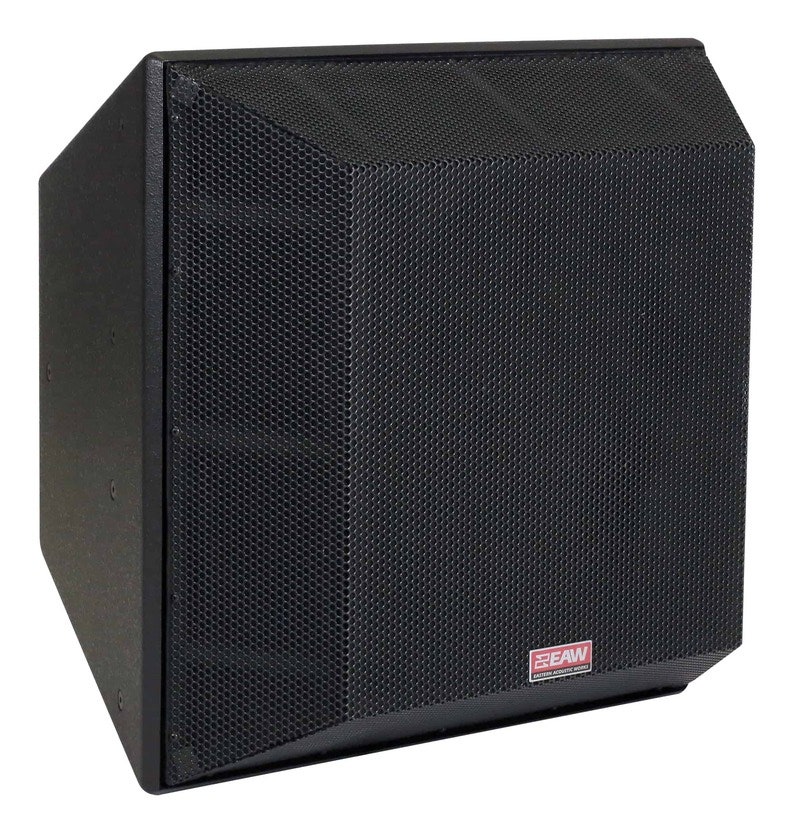

The QX399 has an ultra-efficient and unique high compression driver with a 90° x 90° constant directivity horn (one of six horn patterns available, ranging from 60° x 45° to 120° x 60°). Four Phase Aligned™ 10-in low frequency transducers arranged as vertical and horizontal pairs leverage beneficial interaction based on their spacing to extend pattern control. Because the four low frequency transducers surround the high compression driver symmetrically in the horizontal and vertical planes, response across the full frequency spectrum appears to originate from a single point in space. Users can select between single-amp and bi-amp operating modes. Additionally, each woofer pair is brought out to the input plate independently to permit independent, series, or parallel wiring. Combined, these features offer enormous installation flexibility.

  • High output, single or bi-amplified, two-way performance
  • Broadband pattern control
  • Ultra-efficient HF compression driver
  • Four Phase Aligned™ 10-in cone transducers (vertical and horizontal pairs)
  • Installation flexibility, compact size
  • Frequency Response: 66hz – 20khz
  • Max SPL: 141 dB
  • Operating Mode: Single-amp LF/HF; Bi-amp LF,HF
  • External SignalProcessing: DSP w/EAW Focusing
  • Subsystem: LF 4. 10-in cone HF 1. 1.4-in. exit, 4-in. voice coil compression driver
  • Nominal Beamwidth: Horizontal: 90 - Vertical: 90
  • Power Handling LF: 1800W @ 2ohms (single amp), 800W @ 4ohms (2x pairs) HF: 150W @ 8ohms
  • Connections: Barrier Strip
  • Dimensions: Height: 602 mm Width: 602 mm Depth: 505 mm
  • Weight: 43 kg
