Tuotenumero 2211898

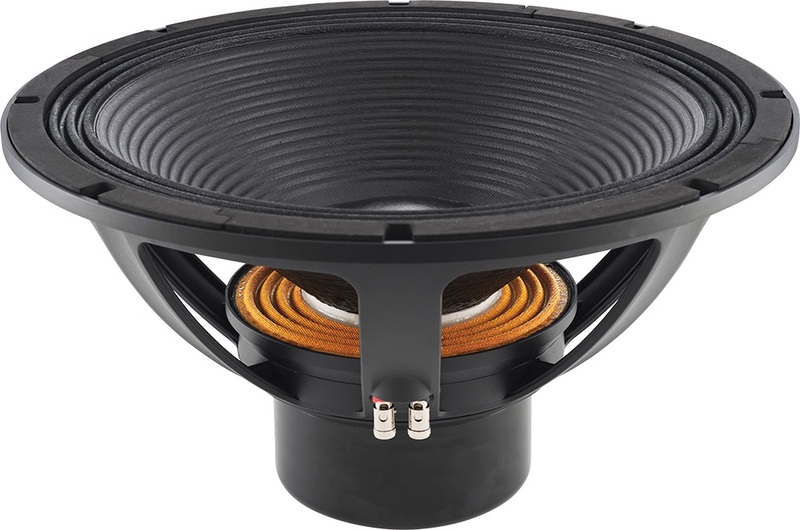

Celestion TSQ1845

18-inch cast aluminium chassis neodymium magnet low frequency loudspeaker - 1800 Watt - 8Ω

Advanced temperature control using 3-channel tuned venting system provides highly efficient cooling across the frequency band. Voice coil typically operates at 30°C lower temperature than other leading drivers in this class. Polysiloxane laminated double suspension provides much greater stability and improved cone displacement symmetry. Lead-out wires precision woven into suspension minimises excess motion and reduces fatigue. Double-sided, weatherproof cone coating enhances durability.

  • Nominal diameter: 457mm / 18in
  • Power rating: 1800W
  • Continuous power rating: 3600W
  • Rated impedance: 8Ω
  • Sensitivity: 96.5dB
  • Frequency range: 30-1,000Hz
  • Chassis type: Cast aluminium
  • Magnet type: Neodymium
  • Voice coil diameter: 115mm / 4.5in
  • Voice coil materia: lRound copper
  • Former material: Glass Fibre
  • Cone material: Glass loaded cellulose, water-resistant coating front & back
  • Surround material: Triple roll, cloth sealed
  • Suspension: Dual, polysiloxane-laminated
  • Gap height (Hg): 12mm / 0.46in
  • VC winding height (Hvc): 36mm / 1.42in
  • 11,8 kg
